Plasma cutting

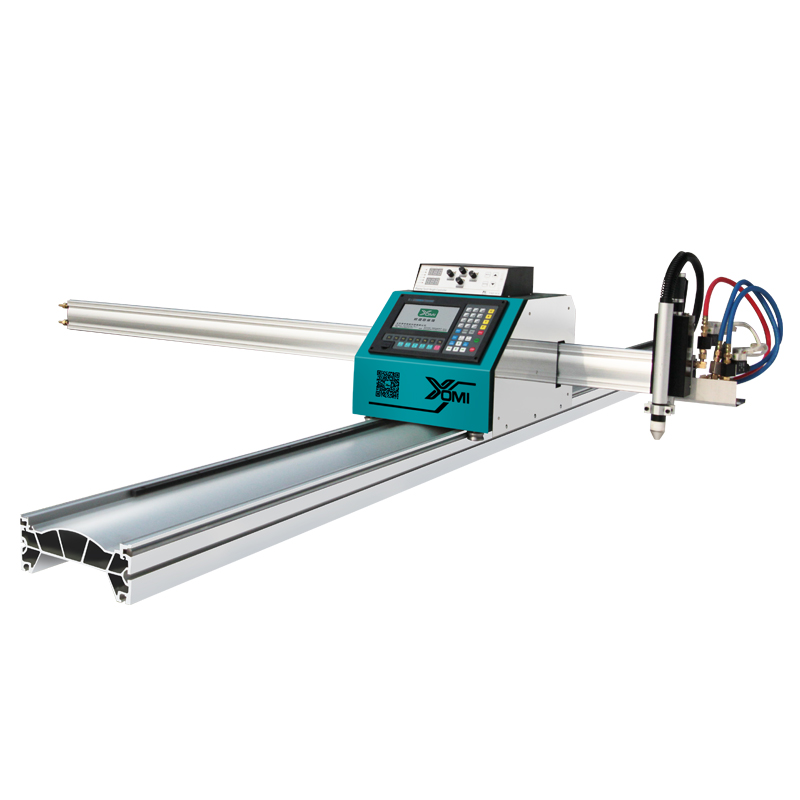

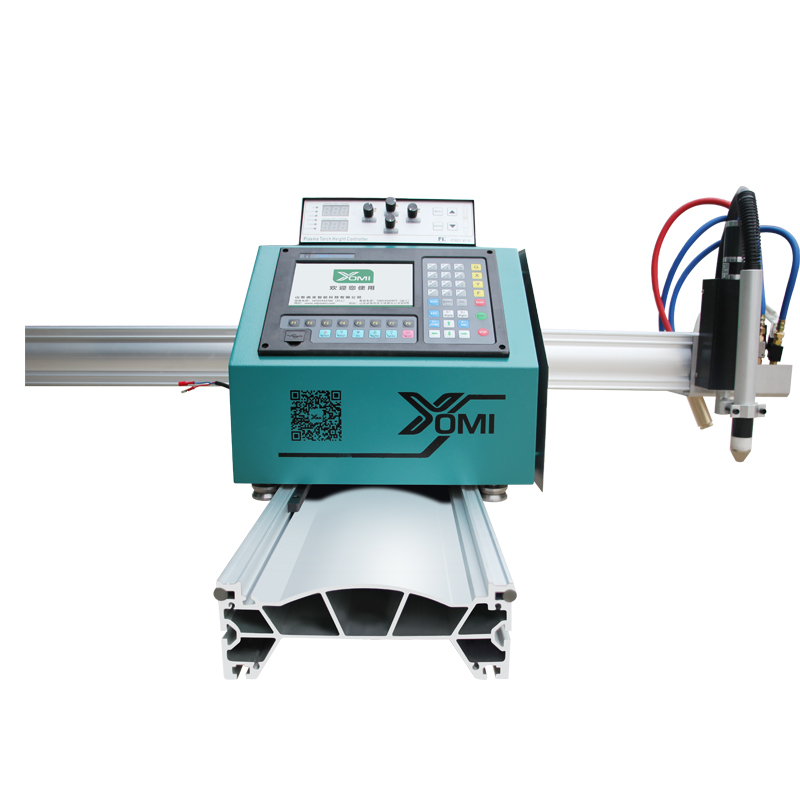

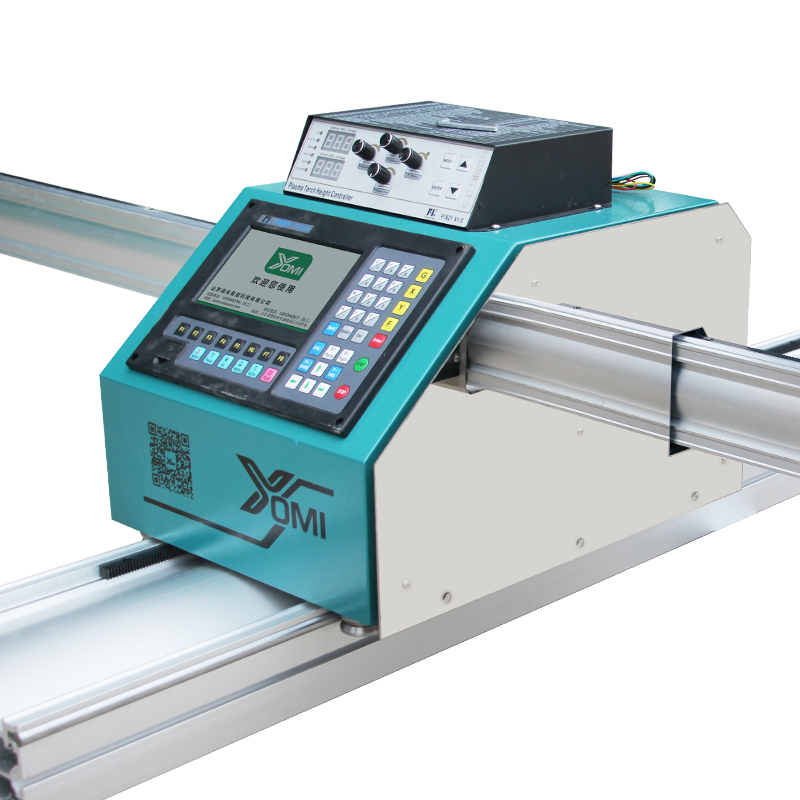

Portable CNC plasma cutting machine
Portable CNC Plasma Cutting Machine is an automatic portable CNC machine with THC. The cutting control system can control the motion of 2 axis, which is suitable for flame or plasma cutting. The THC controller is designed to change the height between torch & workpiece. This kit is accurate,stable, low noise, while easy to operate. With graphic to guide your use, come with 2 booklet of user manual to explicitly guide your operation.
Items | Parameters | ||
| CNC Machine voltage | Single phase 220V,50HZ(customized ) | ||
| Plasma power voltage | Three phase 380V, 50HZ (customized ) | ||
| Cutting mode | Plasma and flame | ||
| Effective cutting range(mm) | 1500mx3000mm (customized ) | ||
| Plasma power source | According to customers’ requirements | ||
| Plasma Cutting speed(mm/min) | 50-3000mm/min | ||
| Moving precision | ±0.1mm/m | ||
| Cutting accuracy | ≤±0.5mm/m | ||
| Driving mode | Unilateral drive | ||
| File transmission | USB | ||

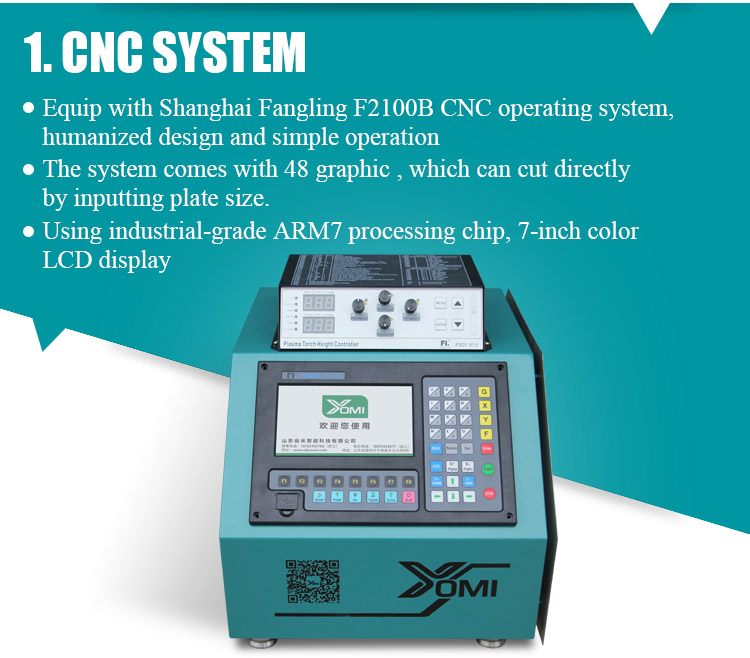

| Cutting controller system | Fangling F2100B | ||

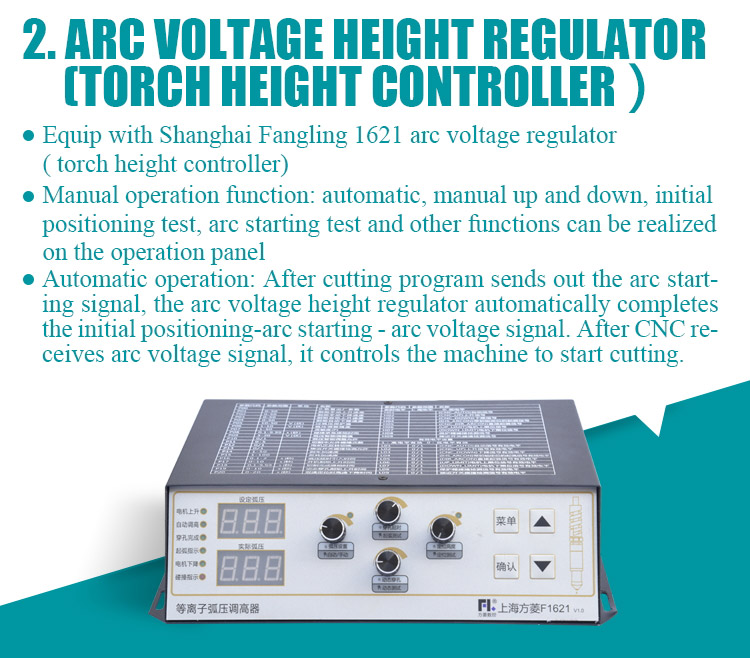

| THC | Fangling F1621 | ||
| Nesting Software | Starcam (Fastcam optional) | ||
| Emergency stop | Yes | ||
| Working temperature | -5～45℃ | ||
| Relative humidity | ＜95% No condensing | ||
| Arc Voltage Height Adjustment | 100mm |
