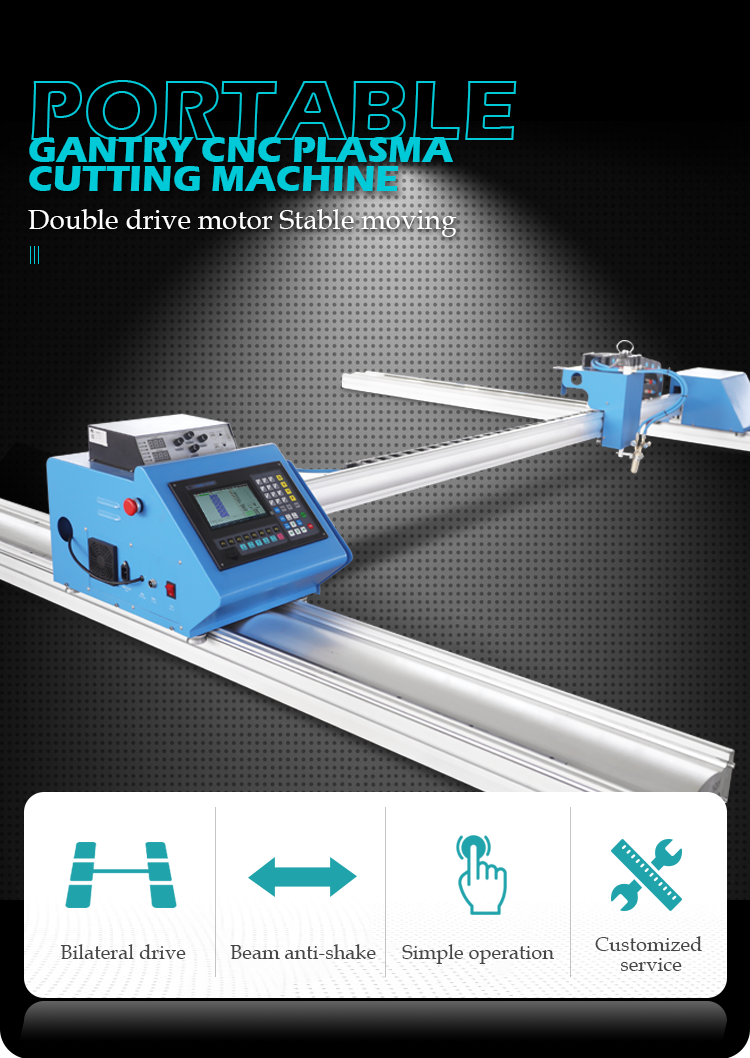

Double Drive Portable Gantry Type Plasma Cutting Machine
Double Drive Gantry Type Portable Plasma Cutting Machine，stable operation at high and low speeds, stable cutting without shaking
Item | Parameter | ||
Model | YM-3070 | ||
Main frame | It adopts aviation aluminum | ||
Drive way | Bilateral drive | ||
Effective cutting area | 2300mm*6000mm(customized ) | ||
Beam size | High hardness aviation aluminum 3120mm* 90mm*120mm(L*W*H) | ||
Longitudinal rail | High hardness aviation aluminum 3500mm*120mm*90mm (L*W*H) | ||
CNC system | Shanghai Jiaotong University F2100 | ||
Motor/Drive | Beijing Start | ||
CNC horizontal moving lifting device | Yomi High-precision screw lifting | ||
Horizontal gas circuit cable drive | Gantry special widening engineering drag chain | ||
CNC Flame cutting torch | 1 set | ||
THC | Chengdu Zhongyu | ||
Nesting software and tutorial | Starcam (Fastcam optional) | ||
Rack | High-precision 1-mold rack | ||
The control line | Fully shielded to resist interference | ||
Cutting method | Flame + plasma cutting |
