Exchange Table Sheet&Tube Fiber Laser Cutting Machine

Exchange Table Sheet&Tube Fiber Laser Cutting Machine
Exchange Table Sheet&Tube Fiber Laser Cutting Machine
Exchange Table Sheet&Tube Fiber Laser Cutting Machine
Exchange Table Sheet&Tube Fiber Laser Cutting Machine
Exchange Table Sheet&Tube Fiber Laser Cutting Machine
Exchange Table Sheet&Tube Fiber Laser Cutting Machine

Faster Exchange Speed

Faster Exchange Speed

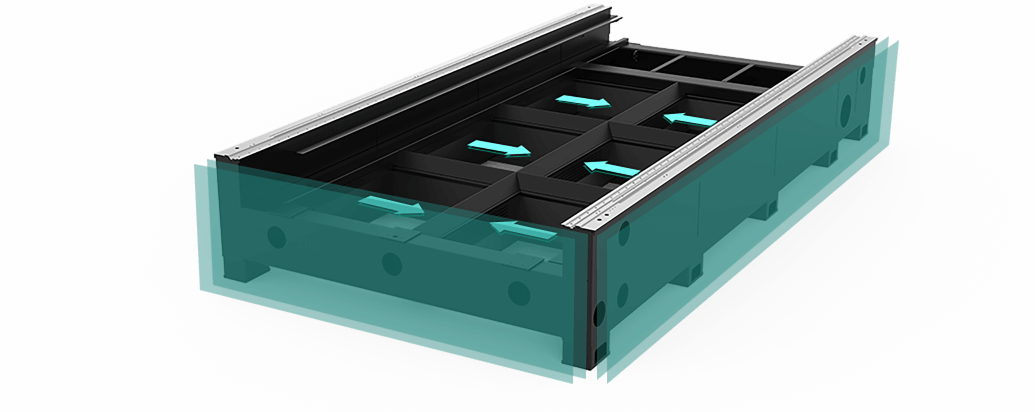

This bed adopts computer finite element analysis to assist the optimization design, the triangular steel plate layout, the design is more reasonable, and the rigidity and strength of the bed are greatly improved.



Auto Focus Laser Head

Suitable for a variety of focal lengths, the focus position can be adjusted according to different thicknesses. Flexible and fast, no collision, automatic edge finding, reducing sheet waste.


Double Pneumatic Chucks

Double Pneumatic Chucks

The two-way pneumatic chuck tube automatically locates the center, extends the transmission structure to improve stable operation, and increases the jaws to save materials.


The Fifth-generation Aviation Aluminum Alloy Beam

The Fifth-generation Aviation Aluminum Alloy Beam

The whole beam is processed by T6 heat treatment process to make the beam obtain the highest strength. Solution treatment improves the strength and plasticity of the beam, optimizes and reduces its weight, and speeds up the movement.


uperheavy Steel Welding Machine Bed

Superheavy Steel Welding Machine Bed

The bed adopts 12mm super-thick monolithic steel plate laser blanking.The groove welding method is used to make the plates reach equal strength butt Then it undergoes stress annealing and natural aging treatment to eliminate internal stress and maintain the extremely high stability and cutting accuracy of the bed.


Intelligent Control System

Intelligent Control System

CypCut plane cutting software is a set of software specially developed for the deep customization of the laser cutting industry, easy to use, rich in functions, suitable for various processing occasions.


Cutting Sample



Model
YM-EH 3015TYM-EH 4020TYM-EH 6020T
Laser Power
1000w~6000w
Accuracy Of Positioning
±0.03mm
Repeat Repositioning Accuracy
±0.02mm
Maximum Speed
100m/min120m/min
Tube Size Range
φ10-φ225mm,□10- □225mm
