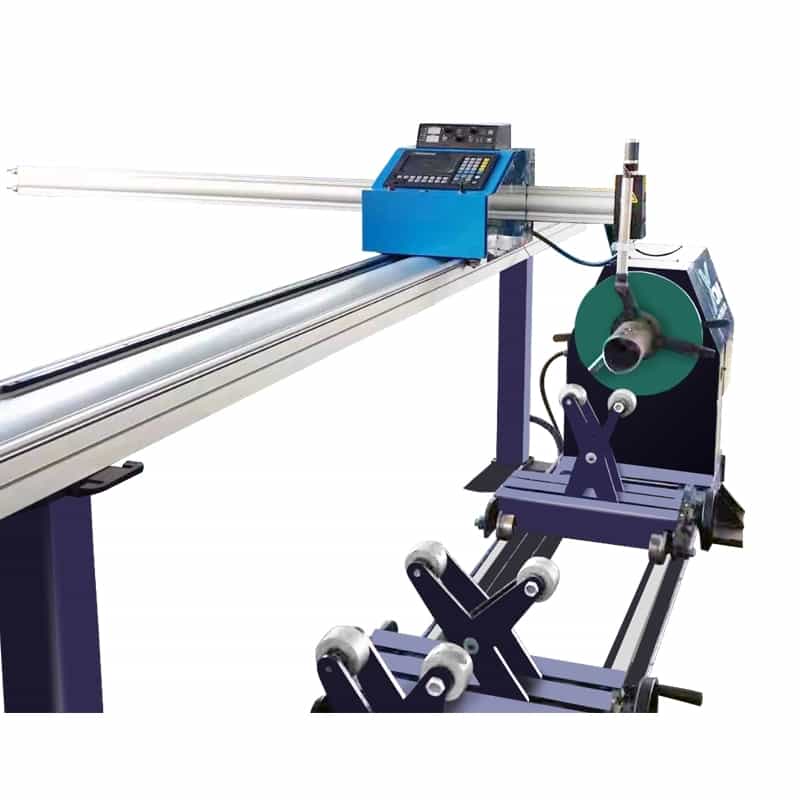

Portable Plasma Cutting Machine for Plate and Pipe


1. The transverse effective cutting is 1500mmx3000mm, Portable CNC Plasma Cutting Machine for Plate and Pipe adopts aluminum alloy guide rail and single side drive.


2. Portable CNC Plasma Cutting Machine for Plate and Pipe can be equipped with flame and plasma cutting torch automatic elevation system according to user's requirements.


3. Portable CNC Plasma Cutting Machine for Plate and Pipe main function features include: the control system adopts industrial computer, which can accept the import of external processing program, and timely graphic tracking when cutting.


4. Portable CNC Plasma Cutting Machine for Plate and Pipe, small size, light weight, suitable for outdoor operation, low energy consumption, simple operation without drawing


5. Portable CNC Plasma Cutting Machine for Plate and Pipe can Inside and outside, "X" bevelling , for the center of the spiral steel or bad pipeline has strong adaptability


6. Double sprocket structure, longer life, flexible spiral steel track for surface roughness, deformed steel has strong adaptability


7. Portable CNC Plasma Cutting Machine for Plate and Pipe can manually adjust cut directed groove .


Technical Parameters
Machine Voltage
Signal phas 220V ,50HZ
Plasma power Voltage
380V 3 Phase,50HZ
Cutting mode
Plasma+Flame
Effective cutting range(mm)
1500*3000mm or 1500*8000mm
Cutting speed
50-3500mm/min
Plasma power

Huayuan LGK-100A 120A/200A/300A

or Hyperthem 80A/105A/125A

Plasma cutting thickness
According to power source models
Auto-precision
±0.2mm/m
Cutting torch lifting distance
200mm
Longitudinal linear precision
±0.2mm/10m
Emergency stop
Yes
Relative humidity
<95% No condensing
Nesting software

ProNest8(standard) or Starcam


Features


Like the large Gantry CNC cutting machine, portable plasma cutting machine can also cut any complex graphics.portable plasma cutting machine applies to carbon steel (flame cutting), stainless steel, copper, aluminum (plasma cutting) and other metal cutting. The bottom plate is a double guide rail, which is as convenient and flexible as semi-automatic cutting trolley. portable plasma cutting machine can be moved at will, and portable plasma cutting machine doesn't occupy the fixed site. Can be widely used in automobiles, shipbuilding, petrochemical, boilers, pressure vessels, construction machinery, light industry and other industries. Especially suitable for single piece and mass production of special-shaped surfaces.



Advantage



1. portable plasma cutting machine is small in size, interference resistant. The device uses the Sino-US joint venture specializing in industrial machine control, to be compact and reasonable structure design it has a light weight, small size, easy to move, and portable plasma cutting machine is suitable for indoor and outdoor, especially small and medium enterprises, improve production material utilization efficiency and reduce production costs

2. Simple Programming Nesting:

Either the manual programming of simple graphics, but also can be arbitrarily complex graphics automatic nesting program was presented by the programming software. portable plasma cutting machine software uses an interactive dialogue, the graphics data is automatically converted, without manual coding, the Auto CAD drawing parts diagram direct deposit, withdraw DXF files, making emissions, select the appropriate program parameters directly after cutting required to generate G-code file

3. Simple operation:

When the same operation can be like a semi-automatic car manual cutting, but also the same as the large CNC automatic cutting (you can jog lift).



Our Services

1. One year warranty, free maintenance throughout service time. If Spare parts are broken, maintenance or replacing of new parts are free.

2. Free technical support through email, telephone, online chat tools such as Teamviewer.

Teamviewer is our remote assistance application that allows our engineer to help solve your technical query.
