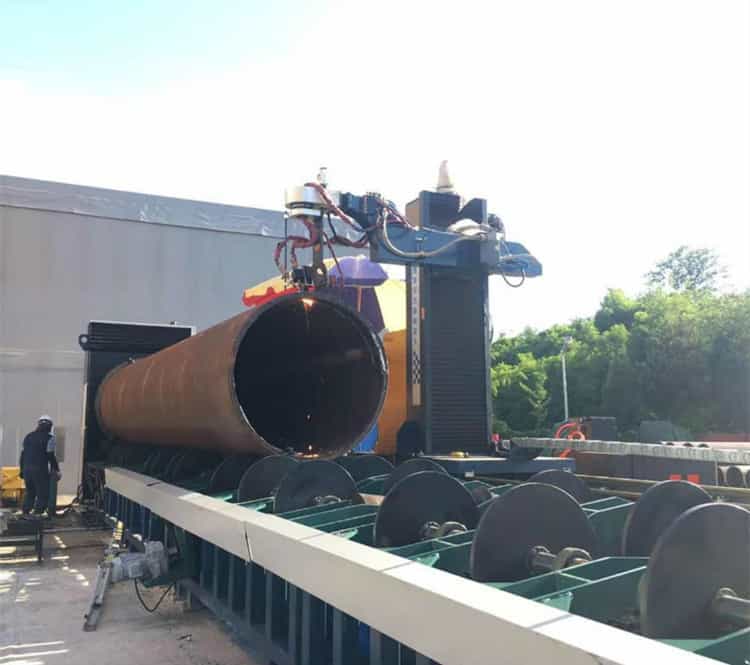

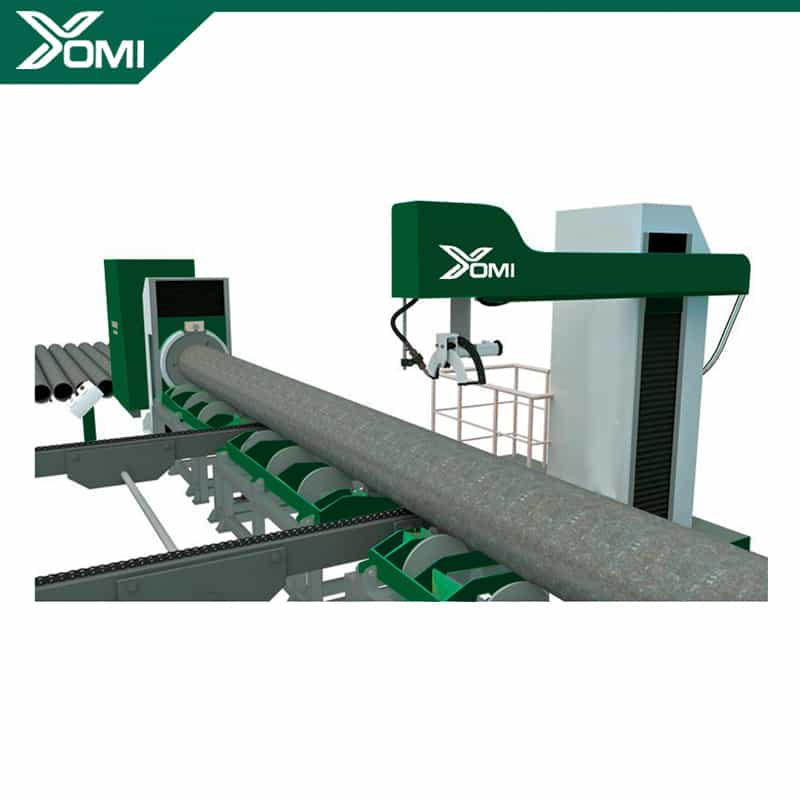

Roller Bed Intersection CNC Plasma And Flame Cutting Machine

Brief Introduction

Plasma cutter, metal plasma cutter, cnc cutting machine, roller bed cnc cutter

This Machine can cut carbon steel, stainless steel, and other non-ferrous metals materials. It is widely used in pressure vessel pipes. pipe processing, network structure, steel, marine engineering, oil pipelines, and other industries.



Parameters

Model

Roller Bed Intersection Cutting Machine

Cutting range

6M,9M,12Mlength can be customized

Machine size

7800*1800*2000mm

Cutting method

Flame/Plasma

Cutting thickness

Flame cutting: 6-60mm

Plasma cutting: according to plasma power

Flame cutting speed

20-700mm/min

Control system

Advantech industrial computer

Plasma cutting speed

According to plasma power

Plasma torch anti-collision protection system

Yes

Driving method

Servo

Software

PIPE apply software

Working condition

Working pressure of compressed gas

7Mpa

Required gas flow of plasma

4500L/H

Working environment

Ventilation, no concussion

Power voltage

5KW(not include plasma power)

Types of gas

Acetylene Propane



Features

1. Can load heavy weight pipe ,longtime using there is no deform

2. Support automatic loading and feeding,improve the working efficiency , save the time

3. Roller type , the center height of chuck is adjustable , it can move up and down. Chuck move, the pipe not move, can improve the cutting quality for big diameter pipe .



Advantages

1. The chassis structure with integrated design, roller-mounted gantry milling plane through a process and improve the overal level of humane design machines to exchange more convenient and reasonable, stable operation and increase life expectancy.

2. The chuck use standard machine chuck: high precision, solid structure, easy to operate.

3. The chuck enter height floating adjuatable, apply to cut big diameter pipes.

4. Independent research and development to optimize CNC pipe systems, AutoCAD version of the engineering design can generate standard G code directly, 3D simulation of the operation, node expansion, long split pipe, fittings optimization, oversized EGES DXF SAT and STL software compatibility and upgrade free for lifetime. It can be modified upon user needs.

5. Taiwan Advantech industrial computer can be programed directly on the machine.

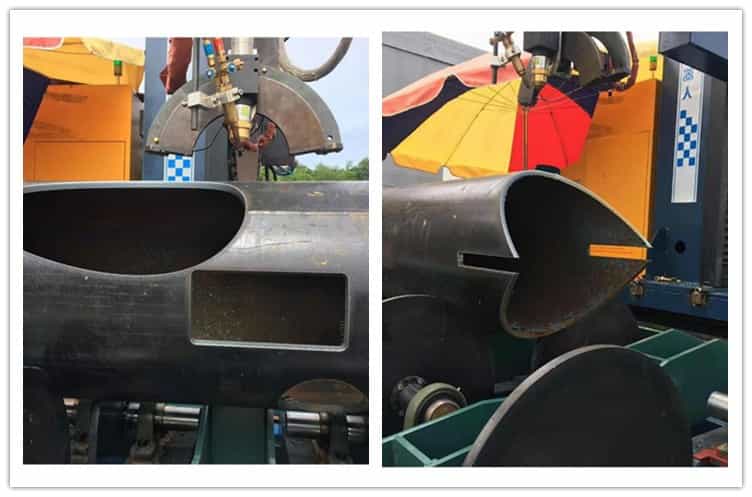

Cutting Samples

Our Services

1.Two years warranty, free maintenance throughout service time. If Spare parts are broken, maintenance or replacing of new parts are free.

2.Free technical support through email, telephone, online chat tools such as Teamviewer.

Teamviewer is our remote assistance application that allows our engineer to help solve your technical query.
